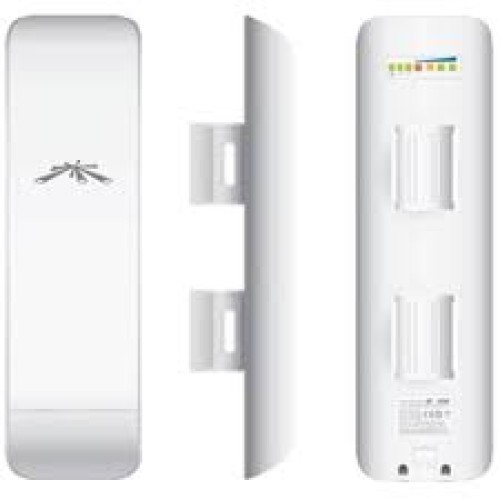

Ubiquiti NanoStation M5, 5 GHz (NSM5)

Description:

• Great Performance: 150+ Mbps real outdoor throughput and up to 15km+ range. Typical range is 2-4
  miles from a LOS tower running AirMax sector antenna's and Rocket M5's.
• Next-Gen Antenna Design: 11dBi dual-polarity gain at 5GHz with optimized cross-polarity isolation in a
  compact form-factor.
• Dual Ethernet Connectivity: A secondary ethernet port with software enabled POE output for seamless
  IP Video integration.
• Intelligent POE: Remote hardware reset circuitry of NanoStation M allows for device to be reset
  remotely from power supply location.
• 802.3af 48V Compliant - Easily becomes 802.3af 48V compliant through use of Ubiquiti Instant 802.3af
  adapter. The adapter sold seperately (SKU#I8023AF-OD or I8023AF-ID)
• Easy Installation - Easily mountable to a pole/mast with mounting straps provided. In addition, the
  Nanostation M5 can be mounted and adjusted in any direction in a 90-degree angle through the use the
  NanoBracket. The NanoBracket is sold seperately (SKU#MT-NANO U)

NanoStation M5 Specifications:

Operating Frequency: 5745-5825Mhz. NOTE: Only 5745-5825 Mhz is supported in the USA and
Canada. It is the operator's responsibility to follow local country regulations including operation within
legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

• Processor Specs: Atheros MIPS 24KC, 400MHz
• Wirelesss: 5Ghz Atheros, 27dBm Adjustable down to 8dBm, AES Encryption
• Memory Information: 32MB SDRAM, 8MB Flash
• Networking Interface: 2 X 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface, PoE Passthrough
• Mount and mounting strap (Nanobracket is optional, sold seperately)
• Operating Temperature: -30C to +80C
• Power Method: Passive PoE
• Power Consumption: 8 Watts
• Power Supply (included): Power Injector 110-240VAC 24VDC .5A North American-style plug
• Size: 29.4 cm x 8 cm x 3cm, Weight: .4kg
