Features:

• New Advanced Design: AV output and LED indicator. AV interface can be used as video output also can connect the speaker. LED indicator with the different modes of breathing, rotating and flashing which will perform in different operative mode. Allows you to enjoy different audio-visual feast
• Multiple Function Selection: Support DLNA, Airplay, Miracast, Airplay mirror and other interconnection agreement (short press mode button switch), and apply for iOS 8.0 and Android 4.4 above. It can be upgraded online and work well while Android, iOS system upgraded
• Dual Output Function：Support HDMI and AV dual output from the same screen. support 1080P Full HD output, you can perfectly to enjoy the ultimate big screen: Watch movies, play games, create your own exclusive cinema
• Small Design of Fashion: finely crafted, round and smooth texture. Support the photo, video, audio, game, file, browser and etc from iPhone, Android, tablet, laptop to large screen TV.easy to carry, easy to operate
• High-tech Technology: Using RK3036 dual core ARM Cortex-A7 1.2GHz chip, faster processing, the product clarity is better and you can decode H265 format video. Support WPS 1 key encryption, quick with router or AP configuration connection

Specification:

1.Size：58mm(L)x58mm(W)x15.2mm(H)
2.Weight：170g
3.Color：Black

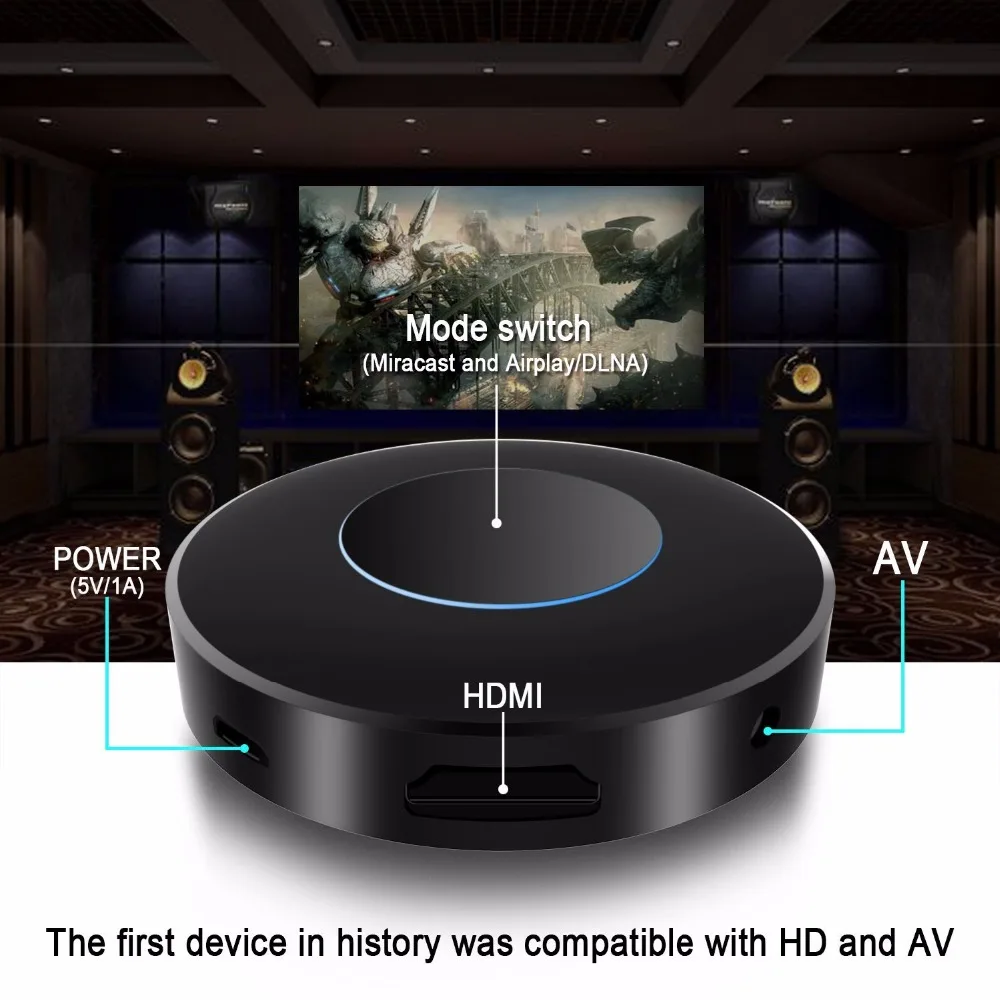

4.Interface：
1)HDMI 1.4a Interface
2)Micro USB Power supply
3)3.5mm Audio Video Interface


Keys:



1)Short Press To Switch Mode

2)Long Press To Restore factory settings

3.CPU：RK3036 Dual Core ARM Cortex-A7 1.2GHz

5.Storage：16MByte SPI FLASH

6.Memory：128MByte DDR3

7.Wi-Fi：802.11 b/g/n 150Mbps 2.4GHz

8.OS：Linux

9.Decoder：H.264/H.265 1080p


Display:



1)HDMI Monitor

2)AV Monitor

4.Indicator light：

1)Breathing

2)Clockwise rotation

3)Anti-clockwise rotation

4)Twinking

11.Power：5V/1A

12.Environment：

1)Working Temperature：0℃~50℃

2)Storage Temperature：-20℃~70℃

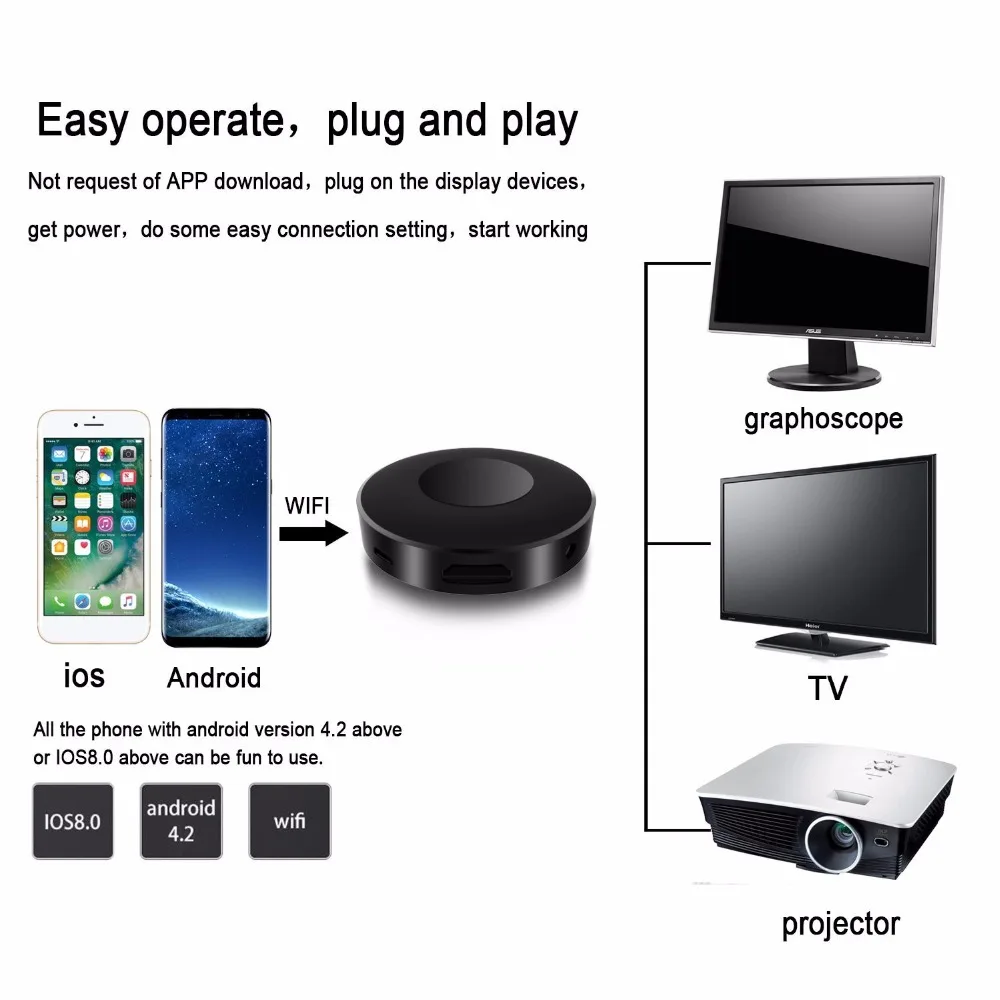

System Requirements：

1.Miracast：Android 4.4 or later system/Windows 8.1 or later system
2.AirPlay Mirroring：iOS 8 or later system
3.AirPlay：iOS 8 or later system
4.DLNA：Intelligent devices Built-in or installed Apps support DLNA function

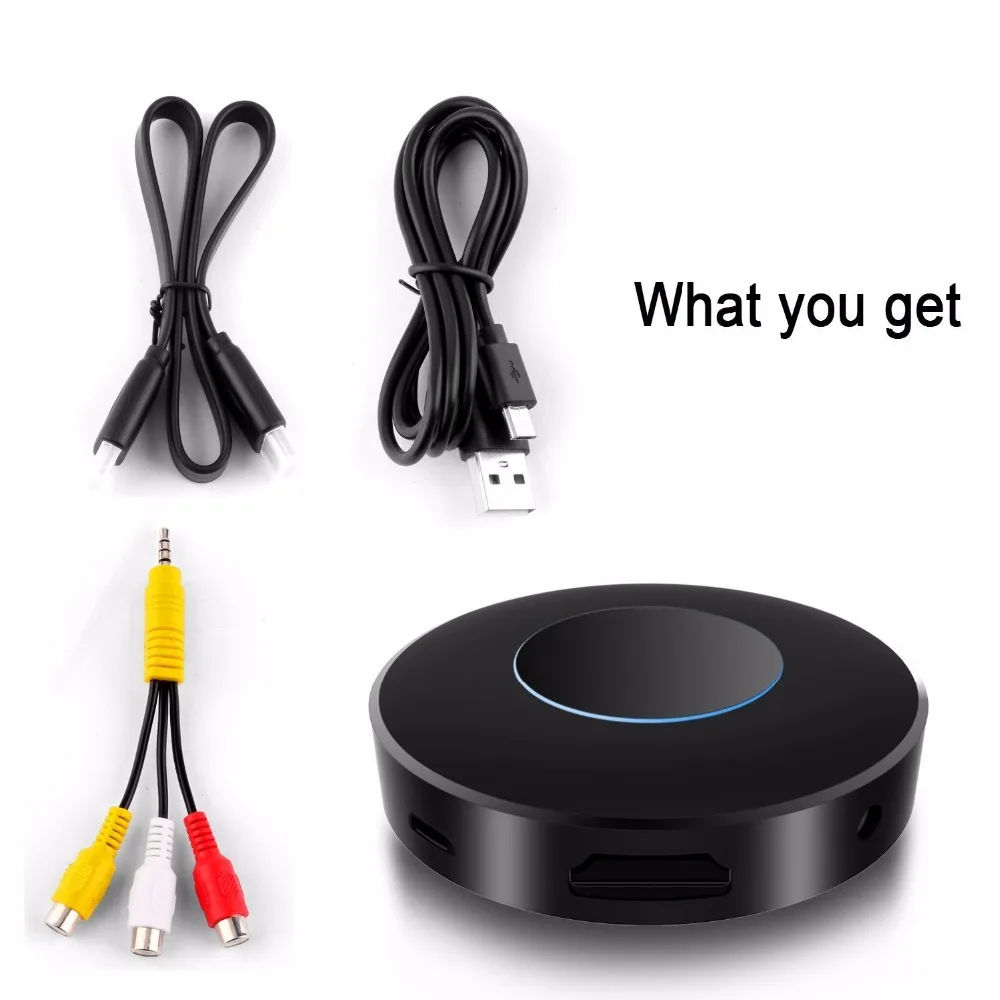

PACKAGE INCLUDE :

1.Q1 Mirroring Dongle x 1
2.Micro USB Power Cable x 1
3.Instructions x 1
4.AV adapter cable x1
5.HDMI cable x1
