Main Benefits

MindWave Mobile is the world’s least expensive research-grade EEG headset available. Designed for interface with mobile devices (iOS and Android) and desktop (Win and Mac), it can be used with a wide variety of games, braintraining and education applications. Its clear brainwave signal is based on the TGAM, the bio-sensor chipset that revolutionized an industry. It is an excellent introductioninto the world of brain-computer interface (BCI).

Overview

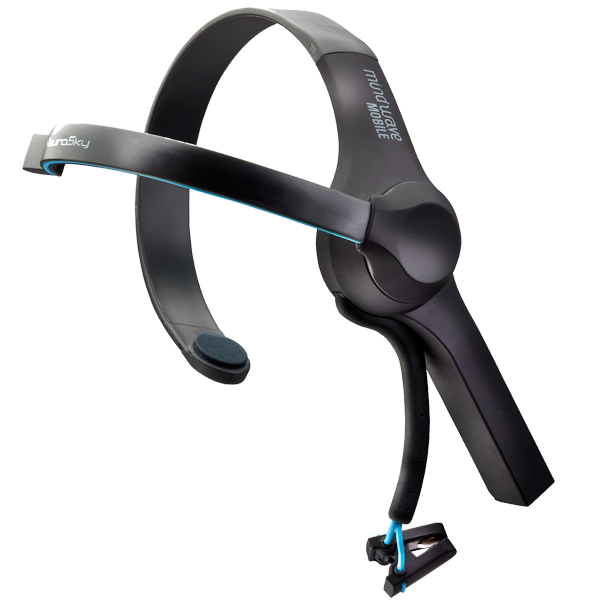

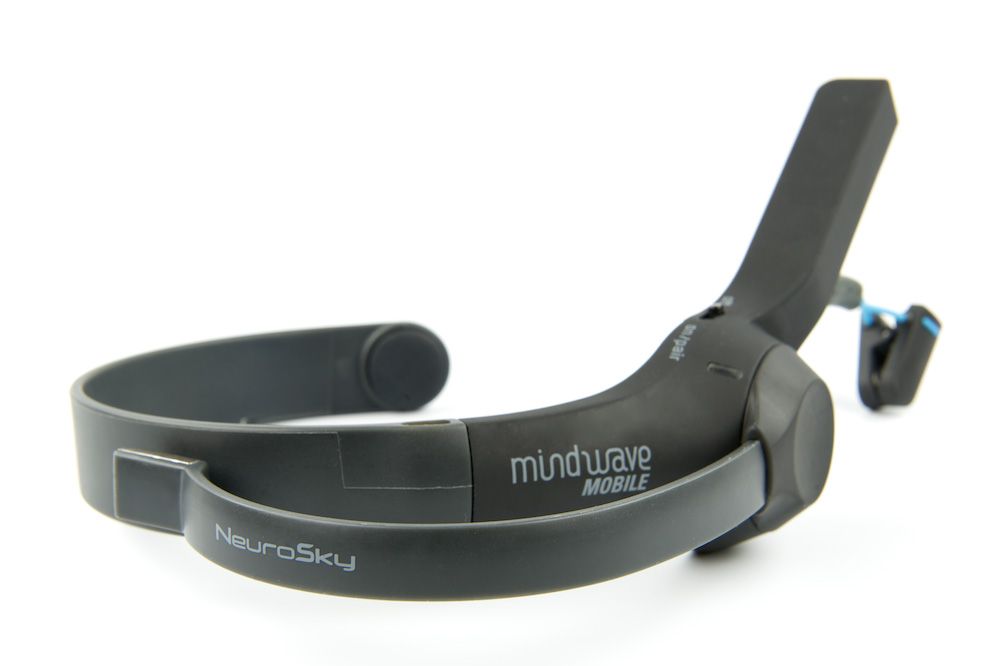

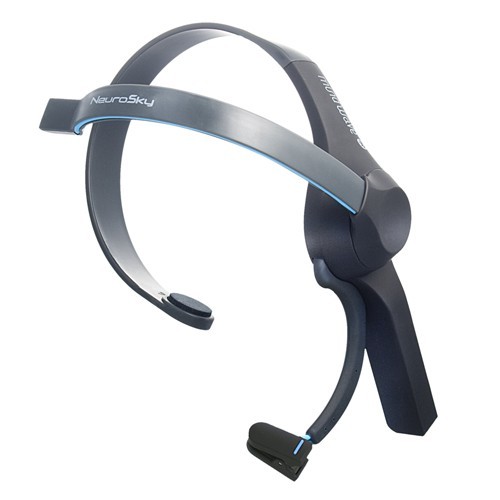

The MindWave Mobile safely measures and outputs the EEG power spectrums (alpha waves, beta waves, etc), NeuroSky eSense meters (attention and meditation) and eye blinks. The device consists of a headset, an ear-clip, and a sensor arm. The headset’s reference and ground electrodes are on the ear clip and the EEG electrode is on the sensor arm, resting on the forehead above the eye (FP1 position). It uses a single AAA battery with 8 hours of battery life.

MindWave Mobile

• Uses the TGAM1 module
• Automatic wireless pairing
• Single AAA Battery (Not included)
• 8-hours battery run time
• Bluetooth v2.1 Class 2 (10 meters range). Bluetooth dongle not included.
• If you do not have Bluetooth on your PC/Mac, here are details on recommended Bluetooth dongles.
• Static Headset ID (headsets have a unique ID for pairing purposes)
• iOS and Android support

Measures

• Raw-Brainwaves
• Processing and output of EEG power spectrums (Alpha, Beta, etc.)
• Processing and output of NeuroSky proprietary eSense meter for Attention, Meditation, and other future meters
• EEG/ECG signal quality analysis (can be used to detect poor contact and whether the device is off the head)

Apps Included

MyndPlayer
Parkour Heroes (for MyndPlay)
MyndPlay Sports: Archery (for MyndPlay)
Paranormal Mynd: Exorcism (for MyndPlay)
Bullet Dodger (for MyndPlay)
Brainwave Visualizer
Man.Up
ZombiePop
Meditation Journal
MindWave Tutorial

Physical

• Weight: 90g
• Sensor arm up: height: 225mm x width: 155mm x depth: 92mm

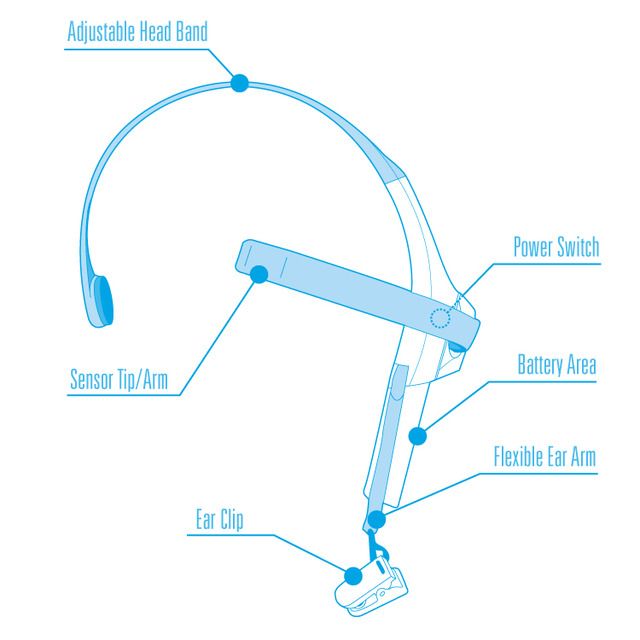

• Sensor Arm down: height: 225mm x width: 155mm x depth: 165mmHeadset Diagram

Bluetooth

• BT Version: 2.1
• BT Output Power: Class 2
• BT Minimum Voltage: 1.0V
• BT Range: 10m range
• BT Power Consmuption: 80mA (when connected and transmitting)
• Low Battery Indicator 1.1V
• UART(Serial): VCC, GNC, TX, RX
• UART Baudrate: 57,600 Baud
Separate additional iOS and Android Apps are available through their respective Mobile App Store.

MyndPlay Brainwave Movie Player included

One of the most clever advances in cinema, MyndPlay brings brainwaves into the movie viewing experience like never before. Brainwaves are monitored through the NeuroSky MindWave Mobile headset so that, at key moments in the movie plot, brainwave levels determine the edits. When the on-screen situation requires high levels of attention, or when the movie hero needs to be relaxed, the viewer can create a new level of sympathy with the on-screen action.
