Intel Motherboard BLKDH87MC for 4th Gen Cpu - Haswell Price in Pakistan is Rs.13,999 as of Sat 18/10/2025
Product Description

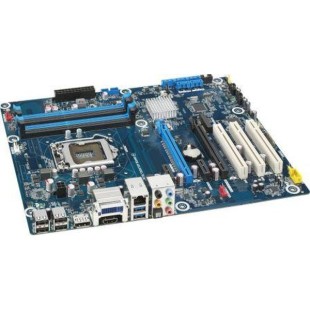

Intel DH87MC Meadow Creak Desktop Motherboard -
Intel H87 Express Chipset - Socket H3 LGA-1150 - DDR3 SDRAM - PCI Express 3.0 - VGA & DVI OEM 2 year warranty
Product Overview
The Intel BLKDH87MC Codenamed Meadow Creek, motherboard based on H87” Haswell” chipset features 4
DIMM slots with a max capacity of 32 GB. Expansion slots include 1 PCI-e x16, 1 PCI-e x4, 2 PCI-e x1 and a single mini
PCIe card connector. Additionally, there are three PCI legacy slots. Storage options consist of 5 SATA 6GB/s and 4
USB 3.0 ports, Audio includes a 10 Channel Jack.For Updated information Please refer to Vendor's product website or PDF Link
Specifications:
•Model Number: BLKDH87MC
•Motherboard Description Intel Meadow Creek LGA1150
•Intel H87 Express Chipset
•Motherboard form factor: ATX
•Packaging -OEM Brown box-Non Retail version for PC Assembly
•Compatible processor series: 4th Generation Core i5, Core i7
•Processor socket: Socket H3 (1150)4th Generation
•Processor thermal power (max): 95 W
•CPU configuration (max): 1
Please ensure you purchase the 4th Generation Intel LGA1150 Processors for this motherboard
Memory
•Supported memory types: DDR3-SDRAM
•Number of memory slots: 4
•Memory slots type: DIMM
•Memory channels support: Dual Non ECC
•Supported memory clock speeds: 1333, 1600 MHz
•Maximum internal memory: 32 GB
Video
•On-board graphics adapter
•Number of displays supported: 3
•HDMI v1.4a
•DVI-I v1.0
•Display Port v1.2
Graphics
•Integrated graphics support for processors with Intel HD Graphics
•Support for a PCI Express* 3.0 x16 add-in graphics card
•Discrete graphics support
Audio
•10 Channel Audio (back channel + front channel)8+2
•Intel HD Audio Technology
•S/PDIF out connector
Internal I/O
•USB 2.0 connectors: 6
•USB 3.0 connectors: 2
•S/PDIF out connector
•Number of SATA 3 connectors: 6
•Infrared Headers
Back panel I/O ports
•USB 2.0 ports quantity: 4
•USB 3.0 ports quantity: 2
•Ethernet LAN (RJ-45) ports quantity: 1
•HDMI ports quantity: 1
•DVI-I ports quantity: 1
•Display Ports quantity: 1
Storage controllers
•Supported hard disk drive interfaces: Serial ATA III
•Number of SATA III connectors: 6
•Intel Rapid Storage Technology: Y
•Intel Matrix Storage Technology: Y
•RAID levels: 0, 1, 5, 10
Networking
•Intel I217V Gigabit Ethernet Controller
•Integrated LAN 10/100/1000 Mbps
•Ethernet LAN connection: Fast, Gigabit
