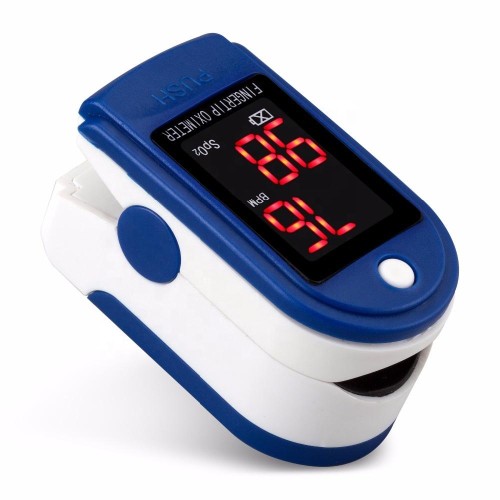

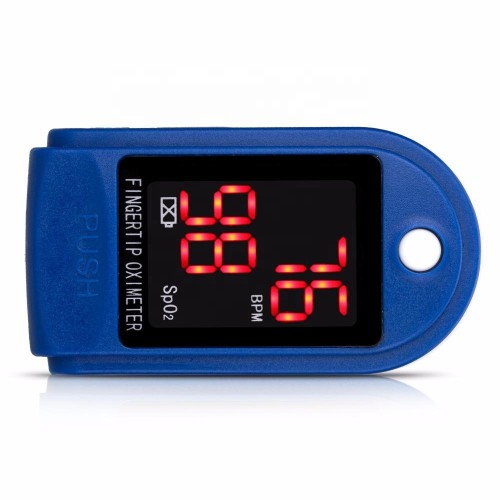

Fingertip Pulse Oximeter AB-88

Designed to determine the amount of oxygen contained in capillary blood. The device is equipped with an LED display, which provides low power consumption and, as a result, the ability to monitor the patient's condition for a long period of time. And the compact size, light weight and high accuracy of the results obtained make it possible to use this device in almost any environment.

Indications for use:

• Chronic diseases of the cardiovascular system
• Respiratory system diseases
• When undergoing oxygen therapy
• Monitoring the level of stress during sports

Basic properties:

• Built-in SpO2 sensor and touch display
• Small in volume, lightweight and easy to carry
• Product operation is simple, low power
• Ability to customize menu functions
• SpO2 values ​​on display
• Display heart rate and bar graph
• Waveform impulse
• Automatic shutdown function when the device is not in the measuring state, it will automatically turn off within 5 seconds or if the finger falls out of the probe during the measurement

Specifications

• SpO2 Measurement range: 0% ~ 100%, (resolution 1%).
• Accuracy: 70% ~ 100%: ± 2%, below 70% not defined.
• PR Measuring Range: 30bpm ~ 250bpm, (Resolution 1bpm)
• Accuracy: ± 2bpm or ± 2% (select more)
• Power consumption: less than 25 mA
• Power Supply: 1.5V Lithium Battery × 2

Performance measurement in a poorly filled state:

• SpO2 and heart rate can be displayed correctly when the pulse-ratio filling is 0.4%.
• SpO2 error is ± 4%, pulse error level ± 2 bpm or ± 2% (select more).
