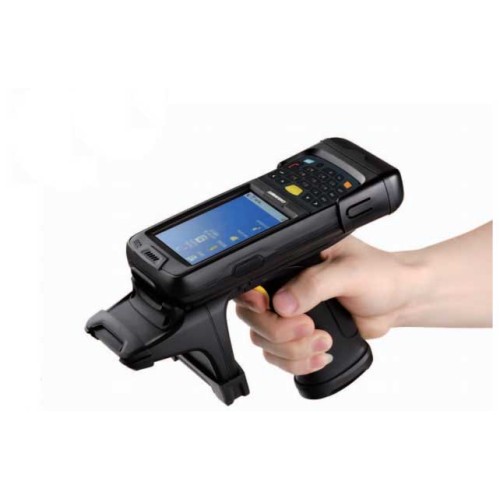

Black Copper BC-PDR-100 UHF handheld data terminal was marked with compact size, portability, durability,functionality and flexibility, which is customized for enterprise administrative personnel and mobile staff, as well as business application and IT demands. BC-PDR-100 UHF integrates UHF read/write module, scanning engine, GSM/ WCDMA/CDMA2000, GPS, Bluetooth, WI-FI, etc.

When using UHF data collection with larger capacity 8400mAh (max.)rechargeable li-ion battery, the working life has been overall improved. Adopting smart power management, users can check information at anytime such as battery information, working life, remaining battery, battery charging status. A set of advanced data capture module in various business fields can obtain abundant and accurate data automatically, matching the verified module with responsive staff. You can now choose  either 1D laser scanner with highest performance or 2D imager scanner capable of collecting 1D/2D barcodes to meet the high demand for barcode scanning.

Black Copper BC-PDR-100 UHF adopts industrial standard, a great amount of mobile solutions can be achieved with this device. Workers can enjoy a convenient and light-hearted working state with this model. The reduced deployment complexity greatly saves the operational cost, as well as significantly improves the work efficiency. For that, Black Copper BC-PDR-100 UHF can bring you the greatest return on investment.

Features

• Higer Power UHF System
• Dual-battery S ystem
• HI-speed Barcode 2D/1D
• Plug&Play FP. Adapter
• Larger Display 3.5"
• 3G Connectition Options
• USB Host Mode Ready
• Familiar Windows CE

PHYSICAL CHARACTERISTICS

• Dimension 192 × 87× 151mm / 7.56 × 3.43 × 5.95in.
• Weights 561g / 19.79oz. (includes UHF module /
• Display 3.5" TFT-LCD touch screen with backlight,
• Keypad Numeric or full alphanumeric, 3 side buttons
• Batteries Main bat. rechargeable li-ion battery 3200mAh
• Expansion slots 1PSAM, 1SIM / PSAM
• Audio 0.5Watt speaker
• Interfaces USB Micro-B, Client mode/Host mode (Optional)
• (includes UHF module/antenna, pistol)
• antenna, main battery, pistol (excludes battery))
• 656g / 23.14oz. (includes UHF module /
• antenna, main battery, pistol (includes battery))
• 65k colors, 240 × 320px
• Pistol bat. rechargeable li-ion battery 5200mAh
• (with pistol grip)
• USB Mini-B (Optional), RS-232 interface

PERFORMANCE CHARACTERISTICS

• CPU Cortex-A8, 800MHz
• RAM 256MB RAM
• Storage 4GB iNAND Flash
• MicroSD max.32GB expansion

PROGRAMMING ENVIRONMENT

• Operating system Windows Embedded CE6.0 Core
• SDK Chainway software development kit
• Language C#, C++, VB.NET
• Tool Microsoft Visual Studio 2005/2008
• Windows Embedded CE6.0 Pro (Optional)

USER ENVIRONMENT

• Operating Temp. -10 to 50°C / 14 to 122°F
• Storage Temp. -40 to 70°C / -40 to 158°F
• Humidity 5% - 95%RH (Non-condensing)
• Tumble Spec. 1,000times, 0.5m/1.6ft tumbles, in accordance
• Sealing / Drop Spec. IP64 or IP65 (Optional); multiple 1.5m/4.9ft drops
• ESD +/-8kv VDC air discharge
• with IEC tumble specification
• over operating temperature range, in accordance
• with MIL-STD 810G
• +/-4KV VDC direct discharge

COMMUNICATION

• WLAN WI-FI IEEE802.11b/g or
• WWAN GSM/GPRS 900/1800MHz or 850/900/1800/1900MHz
• (Optional) or WCDMA (900 / 2100 MHz)
• IEEE802.11b/g/n enterprise (Optional)
• or WCDMA (850 / 2100 MHz)
• or WCDMA (850 / 1900 MHz)
• or CDMA2000 EVDO: 800MHz
• WPAN (Optional) Bluetooth Class v2.0+EDR, typical range 5 - 10m

UHF READER

• Frequency 865-868MHz / 920-925MHz
• Protocol EPC C1 GEN2 / ISO18000-6C
• Antenna Linear polarization (1.8dBi)
• Power 1W (+10dBm to +30dBm)
• R/W ranges Option1, up to 3m/up to 9.84ft. /
• Option2, up to 5m/up to 16.4ft.
• (tags and environment dependant)

BARCODE SCANNER

• 1D Linear Scanner (Optional)
• 1D Laser/CCD Symbol SE955 / SE655
• Symbologies UPC/EAN, Code128, Code39, Code93,
• 2D Imager Scanner (Optional)
• 2D CMOS laser scanner Symbol SE4500
• Symbologies PDF417, MicroPDF417, Composite, RSS,
• Code11, Interleaved 2 of 5, Discrete 2 of 5,
• Chinese 2 of 5, Codabar, MSI, RSS, etc.
• TLC-39, Datamatrix, QR code, Micro QR
• code, A ztec, MaxiCode; Postal Codes: US
• PostNet, US Planet, UK Postal, Australian
• Postal, Japan Postal, Dutch Postal (KIX), etc.

PSAM SECURITY (OPTIONAL)

• Baud rate 9600,19200,38400,43000,56000,57600,
• Protocol ISO7816
• Slot 2 slots (maximum)
• 115200

BIOMETRIC FINGERPRINT (OPTIONAL)

• Sensor TCS2SS
• Sensor type capacitive, area sensor
• Function Enrollment, compare, deletion etc.
• Resolution 508DPI
• Memory 1,000 PCS fingerprints
• Performance FRR < 0.1%; FAR < 0.001%
• Math time (1:1) < 0.1 sec
• Math time (1:N) < 0.5 sec
• GPS (OPTIONAL)
• GPS/AGPS u-blox NEO-6M low energy GPS chip
