Product Overview:

Boost your network speed.

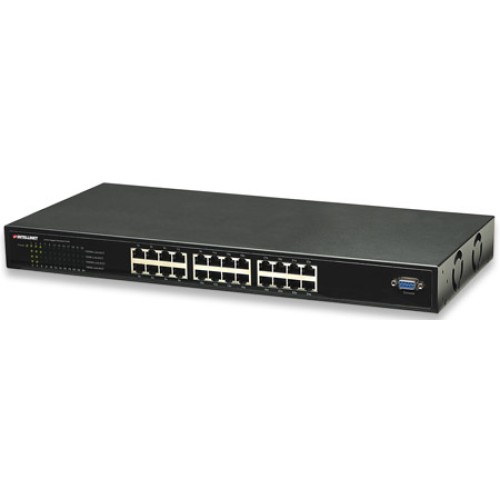

The INTELLINET NETWORK SOLUTIONS Gigabit Ethernet Rackmount Web-Smart Switch offers an array of features while providing superior network throughput.

Extreme Flexibility

Twenty-four 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds.

Easy Management

User-friendly Web-based management allows for easy administration.

Features:

•10/100/1000 auto-sensing ports — automatically detect optimal network speeds

•All RJ45 ports with Auto-MDIX (auto uplink) support

•Supports NWay auto-negotiation

•Broadcast storm control with multicast packet rate settings

•Store and forward switching architecture

•Packet filtering/forwarding rates: 1,488,000 pps (1000 Mbps), 148,800 pps (100 Mbps), 14,880 pps (10 Mbps)

•Supports port controls (speed, flow control and maximum frame size)

•Supports VLAN (tag-based and port-based)

•Supports link aggregation (trunking)

•Provides IEEE 802.1x port-based security

•Supports port mirroring

•19" rackmount

•LEDs for power, link/activity, connection speed

•Supports IEEE802.1D Spanning Tree Protocol

•Supports static priority, TOS, 802.1p Class of Service with 4-level priority queuing

•Web-based configuration

Specifications:

Standards
•IEEE 802.1d (Spanning Tree Protocol)

•IEEE 802.1p (Traffic Prioritization)

•IEEE 802.1q (VLAN Tagging)

•IEEE 802.3 (10Base-T Ethernet)

•IEEE 802.3u (100Base-TX Fast Ethernet)

•IEEE 802.3ab (Twisted Pair Gigabit Ethernet)

•IEEE 802.3ad (Link Aggregation)

•IEEE 802.3x (flow control for full duplex mode)

 General

•Media support:
 - 10Base-T Cat3, 4, 5 UTP/STP RJ45
 - 100Base-TX Cat5 UTP/STP RJ45
 - 1000Base-T Cat5e UTP/STP RJ45

•Packet filter/forwarding rate:
 - 1,488,000 pps (1000 Mbps)
 - 148,800 pps (100 Mbps)
 - 14,880 pps (10 Mbps)

•MAC address table: 8192 entries

•Backplane speed: 48 Gbps

•Switch architecture: store and forward

•Certifications: FCC Class A, CE

 Configuration Options

•Port link speed: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation

•Flow control on/off per port

•VLAN

•Port Mirroring

•Port Aggregation/Trunking: 8 groups with up to 12 member ports per trunk

•Broadcast Storm configuration with ICMP rate, broadcast rate, multicast rate, flooded unicast rate

•Port Filter configuration

 LEDs

•Power

•Link/Act

 Power

•Internal power supply: 100 – 240 V AC, 50/60 Hz

•Power consumption: 30 Watts (maximum)

 Environmental

•Metal housing, 19" rackmount, 1U

•Dimensions: 440 (L) x 205 (W) x 44 (H) mm (17.3 x 8 x 1.7 in.)

•Weight: 3.7 kg (8.0 lbs.)

•Operating temperature: 0 – 40°C (32 – 104°F)

•Operating humidity: 10 – 90% RH non-condensing

•Storage temperature: -40 – 70°C (-4 – 158°F)

 Package Contents

•Gigabit Ethernet Rackmount Web-Smart Switch

•User manual
